1 / 3 · GD-ADL120 white-background product views
Images show finish, lighting and installation references. Confirm your selected configuration when enquiring.
5-7W
GD-ADL120 is a spotlight that mounts visibly below the ceiling, offering an indoor lighting option without a recessed fitting body. The catalogue lists 5-7W versions in the Bullet Style Series design, with 3° / 5° / 8° / 10° / 15° / 24° / 36° beam-angle options.
PRODUCT DETAILS
Nominal product specifications. Values may vary with configuration; confirm your selected combination before ordering.
Final configuration and order requirements are confirmed with our sales team.
View enquiry list →BUYER CHECKPOINTS
Use the product, the application and the evidence together when comparing suppliers.

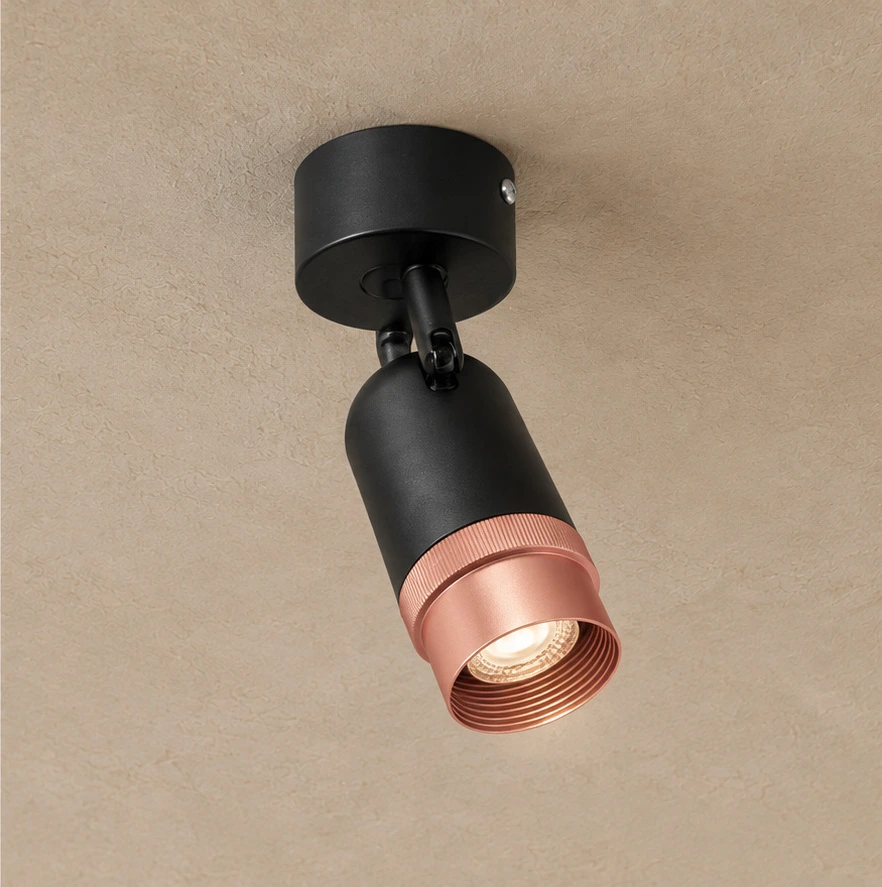

INSTALLED APPEARANCE
The body remains visible below the ceiling. Check fixture dimensions, mounting hardware, wiring entry and driver arrangement for the selected version. The body diameter is not a recessed ceiling cut-out.

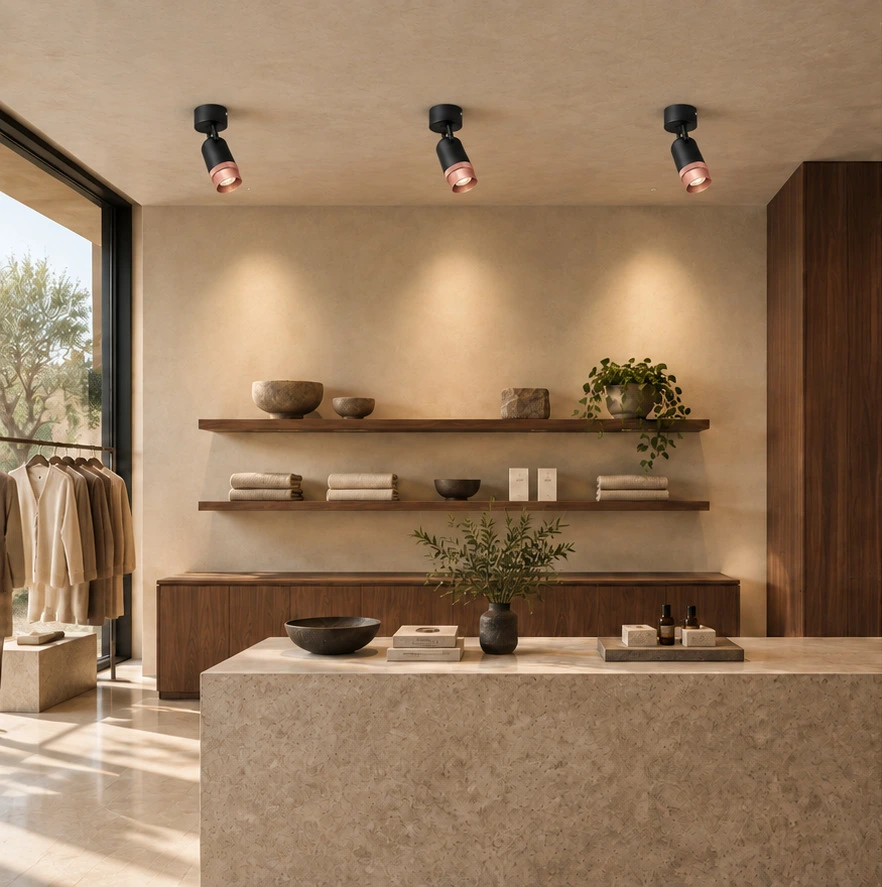

INDOOR APPLICATION
The catalogue scene illustrates the fixture in an indoor setting. Plan beam angle, spacing and mounting height together, then check coverage with the photometric file for the chosen version.
APPLICATION & SELECTION
Application illustrations show design ideas. Confirm the lighting layout and selected construction for the actual project.
CERTIFICATIONS & COMPLIANCE DOCUMENTS
Document availability is verified by model and configuration. Request the corresponding files before approving your order.
No certificate is listed here until its model and configuration have been verified. Tell us your destination market and required standards; we will confirm the applicable files before you approve the order.
Documents do not extend automatically to a different wattage, light source, driver or construction.
Request compliance documents ↗EVIDENCE TO REVIEW
Factory-process material, where shown, is not a model-specific test report. Confirm the relevant documents for your final configuration.
Request the photometric file for the chosen wattage and beam angle. Check coverage and spacing against actual room dimensions. A catalogue illustration does not establish measured output.
Specify the required model, finish and 3000K or 3CCT option. CRI is Ra 90, luminous efficacy is 90–100 lm/W and rated lifespan is 50,000 hours. Confirm the three temperatures of the 3CCT version, supply voltage, driver and any dimming requirement before order approval.
BEFORE YOU SHORTLIST
This is a surface-mounted ceiling model. Select the listed body dimensions, then confirm mounting hardware and wiring. No recessed cut-out dimension is specified for this model.
Beam-angle options: 3° / 5° / 8° / 10° / 15° / 24° / 36°. Finish: Black + Rose Gold / Black. Specify all required body, trim and reflector combinations with the selected model.
3000K and optional 3CCT versions are available with CRI Ra 90. Confirm the three temperatures of the 3CCT version and dimming compatibility with the selected driver. No waterproof rating is claimed here without model-specific verification.
NEXT STEP
Choose the required configuration above, then add the model to your enquiry. We will confirm the matching construction, documents and packaging requirements.
