PRODUCT & MATERIAL
Round adjustable-beam wall light
GD-BOX01-R is a round adjustable-beam wall light with an anti-UV ABS housing and PC lenses. The 2 × 3W LED construction offers three light effects in one fitting.

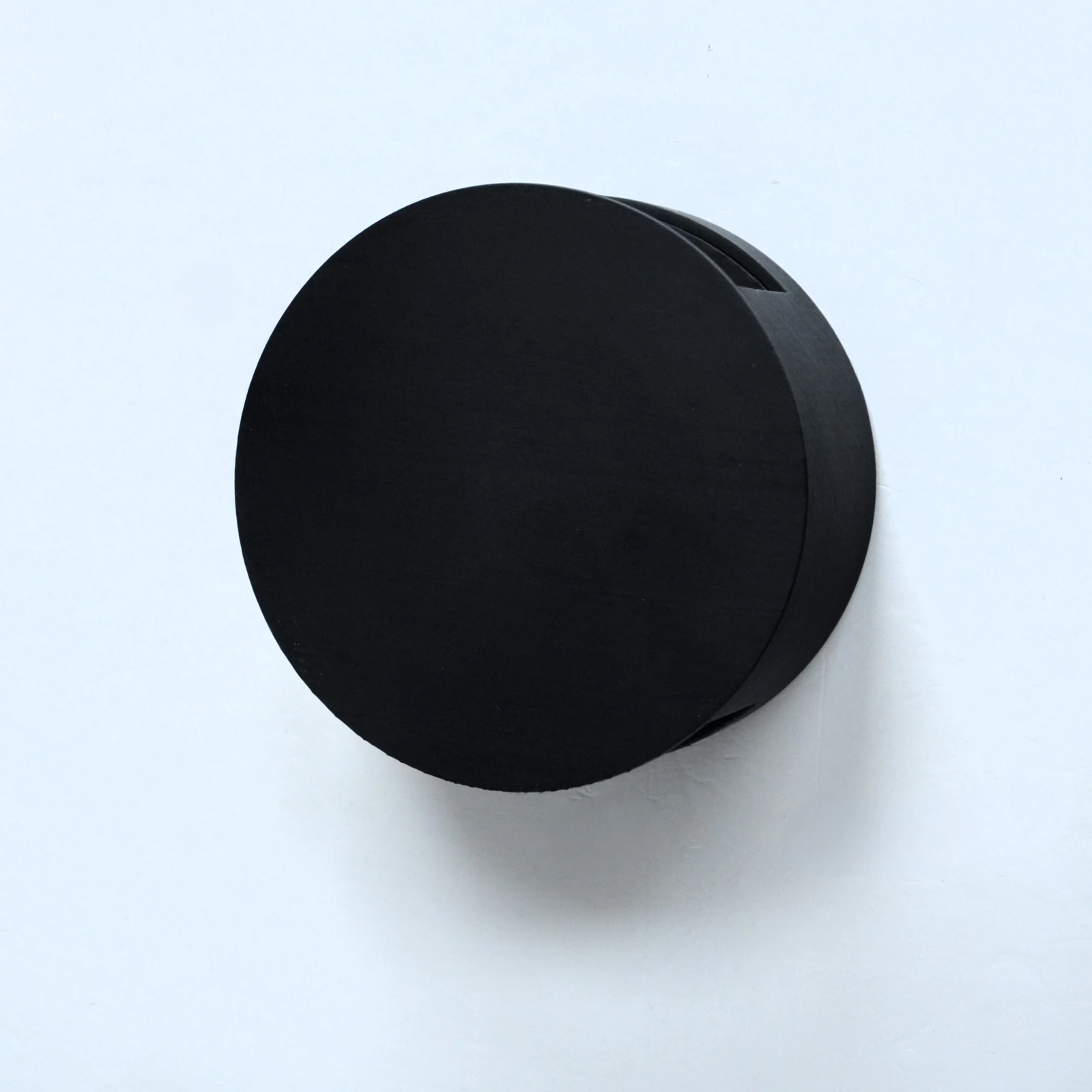

1 / 5 · GD-BOX01-R · black housing · unlit product view
Images show finish, lighting and installation references. Confirm your selected configuration when enquiring.
Round adjustable-beam wall light
2 × 3W / 200 lm / IP65
Compliance documentsEMC · LVD · IECMatched to the listed configuration ↓Description
GD-BOX01-R is a round adjustable-beam wall light with an anti-UV ABS housing and PC lenses. The 2 × 3W LED construction offers three light effects in one fitting.
Features
- Round housing with three selectable light effects
- Anti-UV ABS housing
- IP65 / IK06 as listed in the quotation
PRODUCT DETAILS
Specifications & options
Nominal product specifications. Values may vary with configuration; confirm your selected combination before ordering.
- Rated power
- 2 × 3W
- Rated luminous flux
- 200 lm
- Dimensions
- 108 × 108 × 55mm
- Housing material
- Anti-UV ABS housing
- Diffuser
- PC lens
- Ingress protection
- IP65
- Impact rating
- IK06
- Colour rendering
- Ra > 80
Choose your options
Final configuration and order requirements are confirmed with our sales team.
View enquiry list →BUYER CHECKPOINTS
Look beyond the specification table.
Use the product, the application and the evidence together when comparing suppliers.

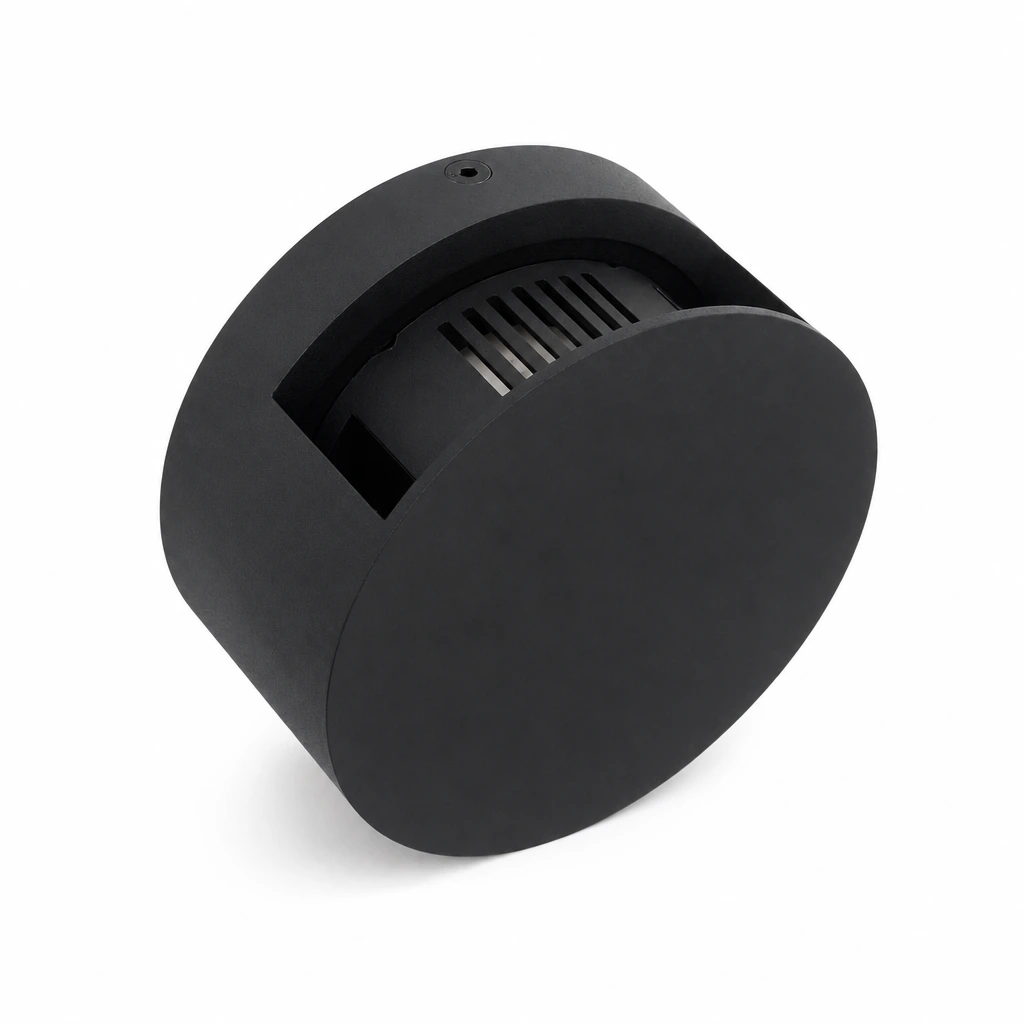

VIEW THE FINISH
Confirm the actual appearance.
Review the additional product view alongside the physical sample. Confirm the selected colour and light effect for the exact configuration before placing a production order.

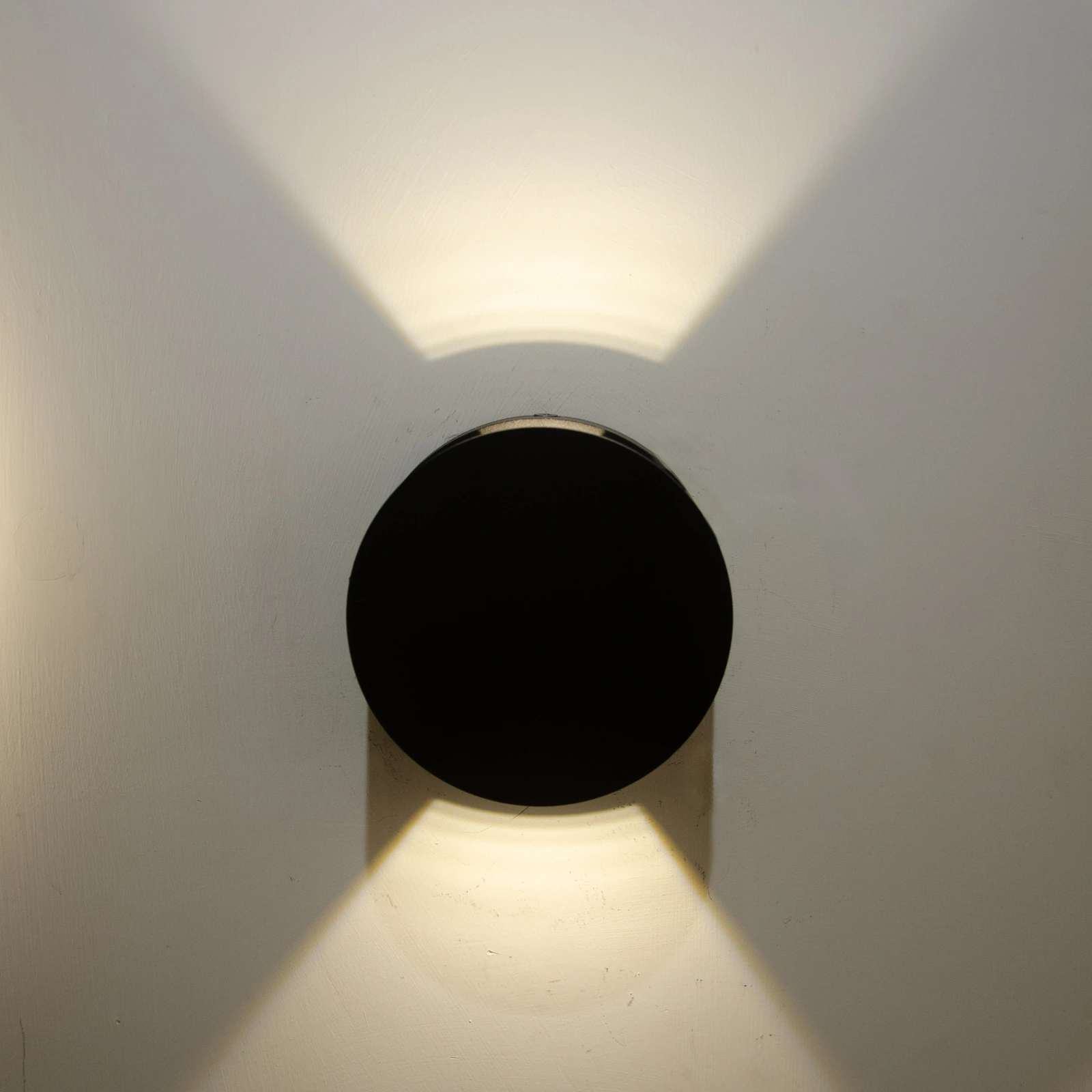

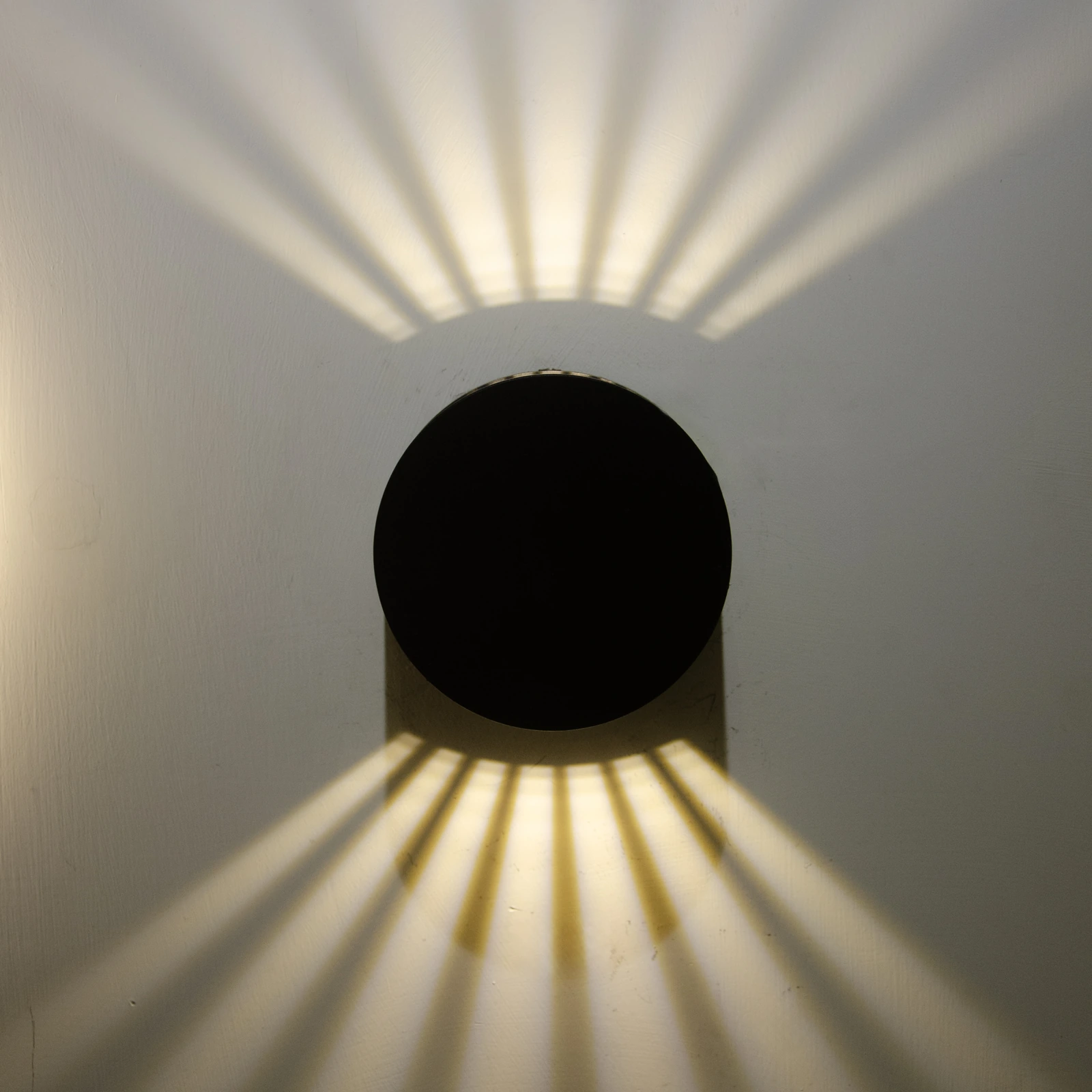

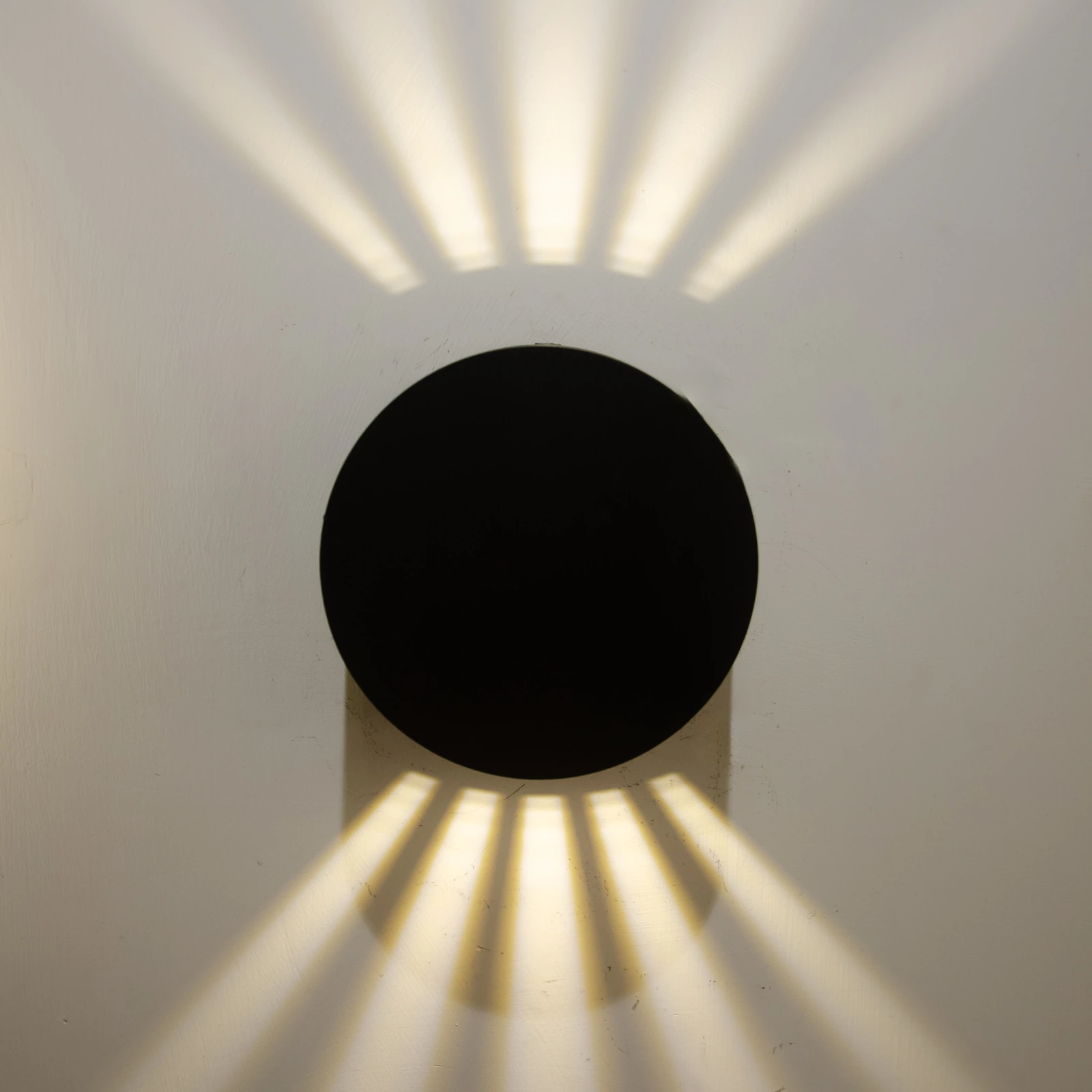

LIGHT EFFECTS & FUNCTIONS
See the options in the product.
Compare the illustrated light effects and adjustments. Confirm the selected configuration and adjustment range before ordering.
APPLICATION & SELECTION
Where this model fits—and what to confirm first
Consider GD-BOX01-R for exterior walls and entrances. Before ordering, confirm the destination market, installation method, supply specification, finish, required packaging and documentation.
01
Entrances and exterior walls
02
Outdoor circulation areas
03
Retail ranges for the destination market
CERTIFICATIONS & COMPLIANCE DOCUMENTS
Documents matched to this configuration
Document availability is verified by model and configuration. Request the corresponding files before approving your order.
DocumentConfigurationCertificate / report no.Issuer / dateStatus
EMC3W × 2, with changable beam offers three effect in one light
LCSB10135121ELCS2025-11-7Model and configuration listed in quotation; confirm current filesLVD3W × 2, with changable beam offers three effect in one light
LCSB10135120SLCS2025-12-2Model and configuration listed in quotation; confirm current filesIEC3W × 2, with changable beam offers three effect in one light
LCSB10135118SLCS2025-8-29Model and configuration listed in quotation; confirm current filesDocuments do not extend automatically to a different wattage, light source, driver or construction.
Request compliance documents ↗TESTING & QUALITY CHECKS
See how we check our lights.
Explore factory testing relevant to plastic and resin outdoor lighting: material exposure and protection in use.
UV weathering
Outdoor housings face sunlight over time. See lighting parts placed in our UV chamber for accelerated exposure testing.
Water ingress testing
Water exposure matters outdoors. See our spray-test setup for checking a fitting’s protection against water ingress.
IK impact testing
A mounted sample, a controlled impact. See how a pendulum is used to assess resistance to mechanical impact.
Test information for GD-BOX01-R
The quotation lists IP65 / IK06. These clips illustrate factory procedures, not a test result for this model. Request the matching reports, material information and installation documents for your selected configuration and market.
BEFORE YOU SHORTLIST
Questions buyers commonly ask
Which light configuration should I order for GD-BOX01-R?
The quotation lists 2 × 3W and nominal output of 200 lm. Confirm the required supply voltage and colour temperature for the selected configuration; unlisted options are not automatically included.
What should I verify before adding GD-BOX01-R to my range?
Check the physical sample, dimensions (108 × 108 × 55mm), finish, light effect and the requirements of your destination market. Then request documentation for the exact configuration.
Which documents are available for GD-BOX01-R?
Document availability must be checked against the selected wattage, light source, construction and destination market. Tell us which certificates and reports your retailer or importer requires; we will confirm the matching files before the order.
What information is needed for an initial quotation?
Share the destination country, estimated quantity, selected finish and light specification, plus any logo, colour-box or PDQ requirements. This lets us quote a comparable construction.
NEXT STEP
Is GD-BOX01-R a fit for your range?
Choose the required configuration above, then add the model to your enquiry. We will confirm the matching construction, documents and packaging requirements.
