PRODUCT & MATERIAL
Tapered Opal E27 Wall Light
GD-PW012-2 is a tapered opal e27 wall light with Anti-UV ABS housing and PC lampshade. The E27 version is rated at MAX 40W. Confirm lamp dimensions and inclusion when ordering.

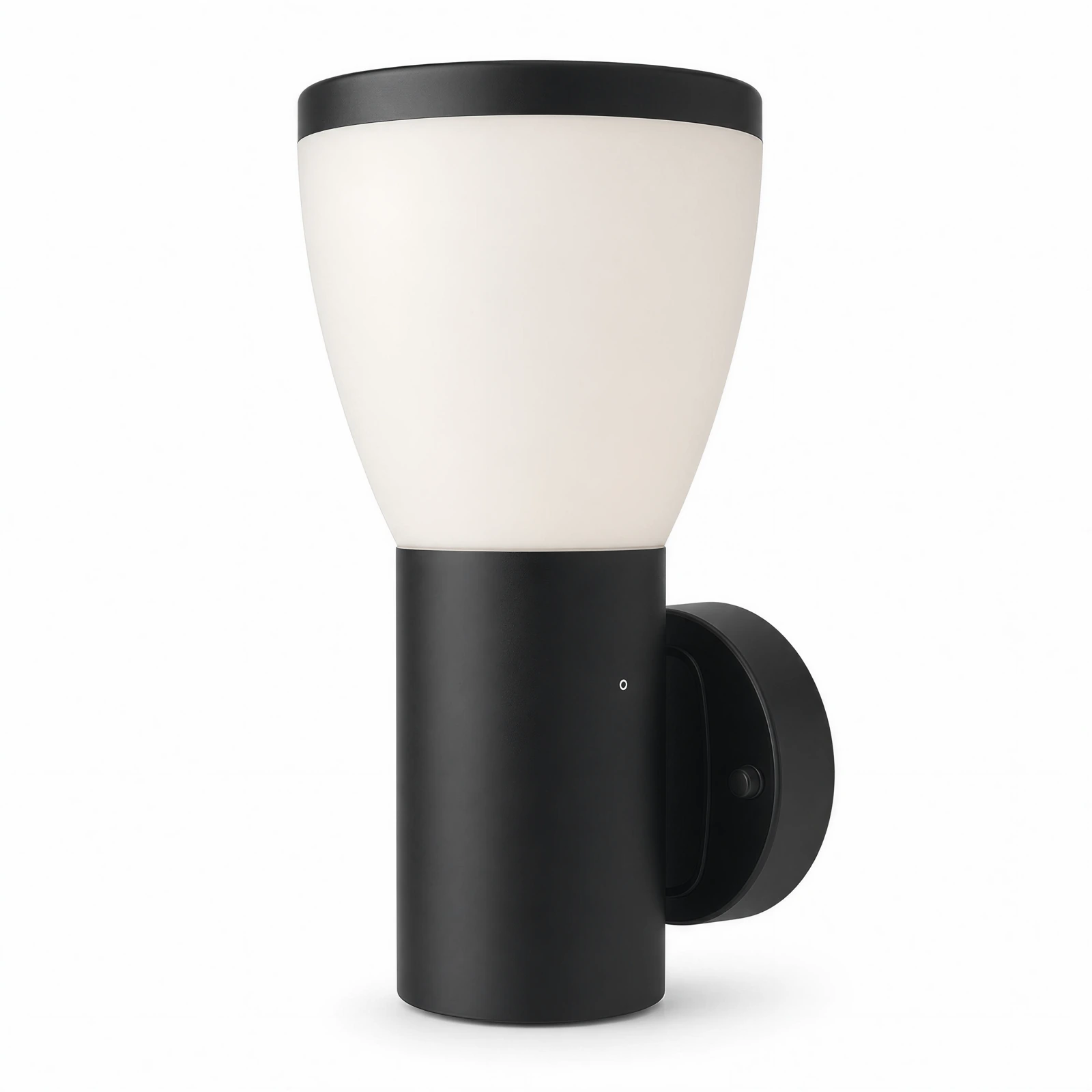

1 / 3 · GD-PW012-2 · black housing · product view with lamp off
Images show finish, lighting and installation references. Confirm your selected configuration when enquiring.
Tapered Opal E27 Wall Light
MAX 40W / IP44
Description
GD-PW012-2 is a tapered opal e27 wall light with Anti-UV ABS housing and PC lampshade. The E27 version is rated at MAX 40W. Confirm lamp dimensions and inclusion when ordering.
Features
- Tapered Opal E27 Wall Light.
- Anti-UV ABS housing with PC lampshade.
- IP44 for the quoted construction.
- IK06 impact rating listed.
- Design offered for range evaluation; tooling and production arrangements to be confirmed.
PRODUCT DETAILS
Specifications & options
Nominal product specifications. Values may vary with configuration; confirm your selected combination before ordering.
- Rated power
- MAX 40W
- Dimensions
- 156 × 160 × 276mm
- Housing material
- Anti-UV ABS housing
- Diffuser
- PC lampshade
- Ingress protection
- IP44
- Impact rating
- IK06
Choose your options
Final configuration and order requirements are confirmed with our sales team.
View enquiry list →BUYER CHECKPOINTS
Look beyond the specification table.
Use the product, the application and the evidence together when comparing suppliers.
VIEW THE FINISH
Plan the installation and light effect.
Review the additional product view alongside the physical sample. Confirm the selected colour and light effect for the exact configuration before placing a production order.
APPLICATION & SELECTION
Where this model fits—and what to confirm first
Consider GD-PW012-2 for exterior walls and entrances. Before ordering, confirm the destination market, installation method, supply specification, finish, required packaging and documentation.
01
Entrances and exterior walls
02
Outdoor circulation areas
03
Retail ranges for the destination market
CERTIFICATIONS & COMPLIANCE DOCUMENTS
Confirm documents for your market
Document availability is verified by model and configuration. Request the corresponding files before approving your order.
No certificate is listed here until its model and configuration have been verified. Tell us your destination market and required standards; we will confirm the applicable files before you approve the order.
Documents do not extend automatically to a different wattage, light source, driver or construction.
Request compliance documents ↗TESTING & QUALITY CHECKS
See how we check our lights.
Explore factory testing relevant to plastic and resin outdoor lighting: material exposure and protection in use.
UV weathering
Outdoor housings face sunlight over time. See lighting parts placed in our UV chamber for accelerated exposure testing.
Water ingress testing
Water exposure matters outdoors. See our spray-test setup for checking a fitting’s protection against water ingress.
IK impact testing
A mounted sample, a controlled impact. See how a pendulum is used to assess resistance to mechanical impact.
Test information for GD-PW012-2
The quotation lists IP44 / IK06. These clips illustrate factory procedures, not a test result for this model. Request the matching reports, material information and installation documents for your selected configuration and market.
BEFORE YOU SHORTLIST
Questions buyers commonly ask
What lamp should I select for GD-PW012-2?
The quoted fitting uses a E27 lampholder with a limit of MAX 40W. Confirm lamp dimensions, inclusion, light colour and compatibility before ordering. Light output depends on the selected lamp.
What should I verify before adding GD-PW012-2 to my range?
Check the physical sample, dimensions (156 × 160 × 276mm), finish, light effect and the requirements of your destination market. Then request documentation for the exact configuration.
Which documents are available for GD-PW012-2?
Document availability must be checked against the selected wattage, light source, construction and destination market. Tell us which certificates and reports your retailer or importer requires; we will confirm the matching files before the order.
What information is needed for an initial quotation?
Share the destination country, estimated quantity, selected finish and light specification, plus any logo, colour-box or PDQ requirements. This lets us quote a comparable construction.
NEXT STEP
Is GD-PW012-2 a fit for your range?
Choose the required configuration above, then add the model to your enquiry. We will confirm the matching construction, documents and packaging requirements.
