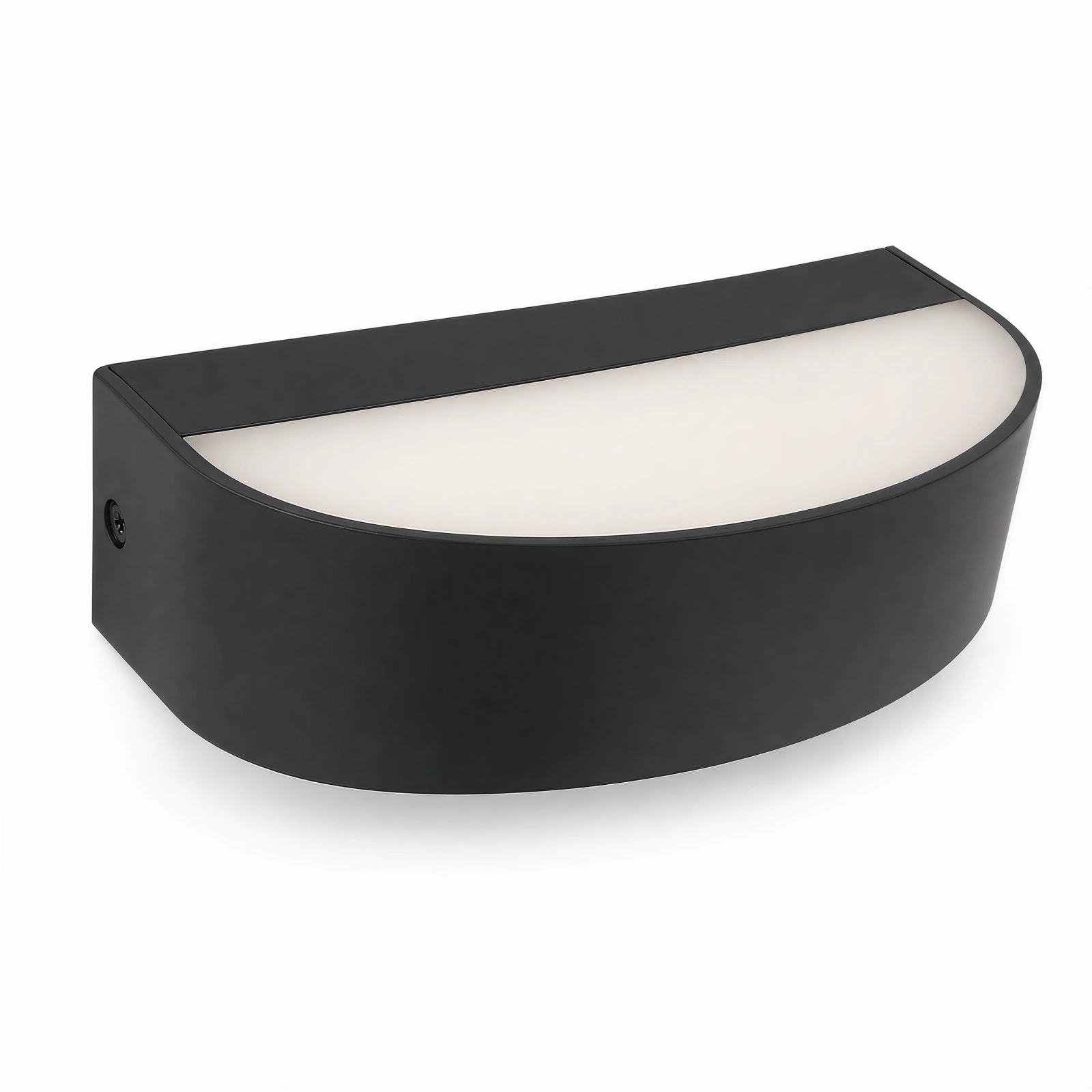

1 / 3 · GD-PUD019-R · black housing · unlit product view
Images show finish, lighting and installation references. Confirm your selected configuration when enquiring.
9W / 400 lm / IP65
Compliance documentsEMC · LVD · IEC · RoHSMatched to the listed configuration ↓The GD-PUD019-R is a curved led outdoor wall light designed for exterior walls, entrances and circulation areas. Its curved horizontal face gives retail and brand ranges a clearly differentiated outdoor-lighting option.
PRODUCT DETAILS
Nominal product specifications. Values may vary with configuration; confirm your selected combination before ordering.
Final configuration and order requirements are confirmed with our sales team.
View enquiry list →BUYER CHECKPOINTS
Use the product, the application and the evidence together when comparing suppliers.
OUTDOOR MATERIAL
This model uses an anti-UV ABS housing with a PC diffuser. For humid or coastal programmes, compare the material specification, UV-aging evidence and approved colour sample—not only the initial appearance.
LIGHT EFFECT

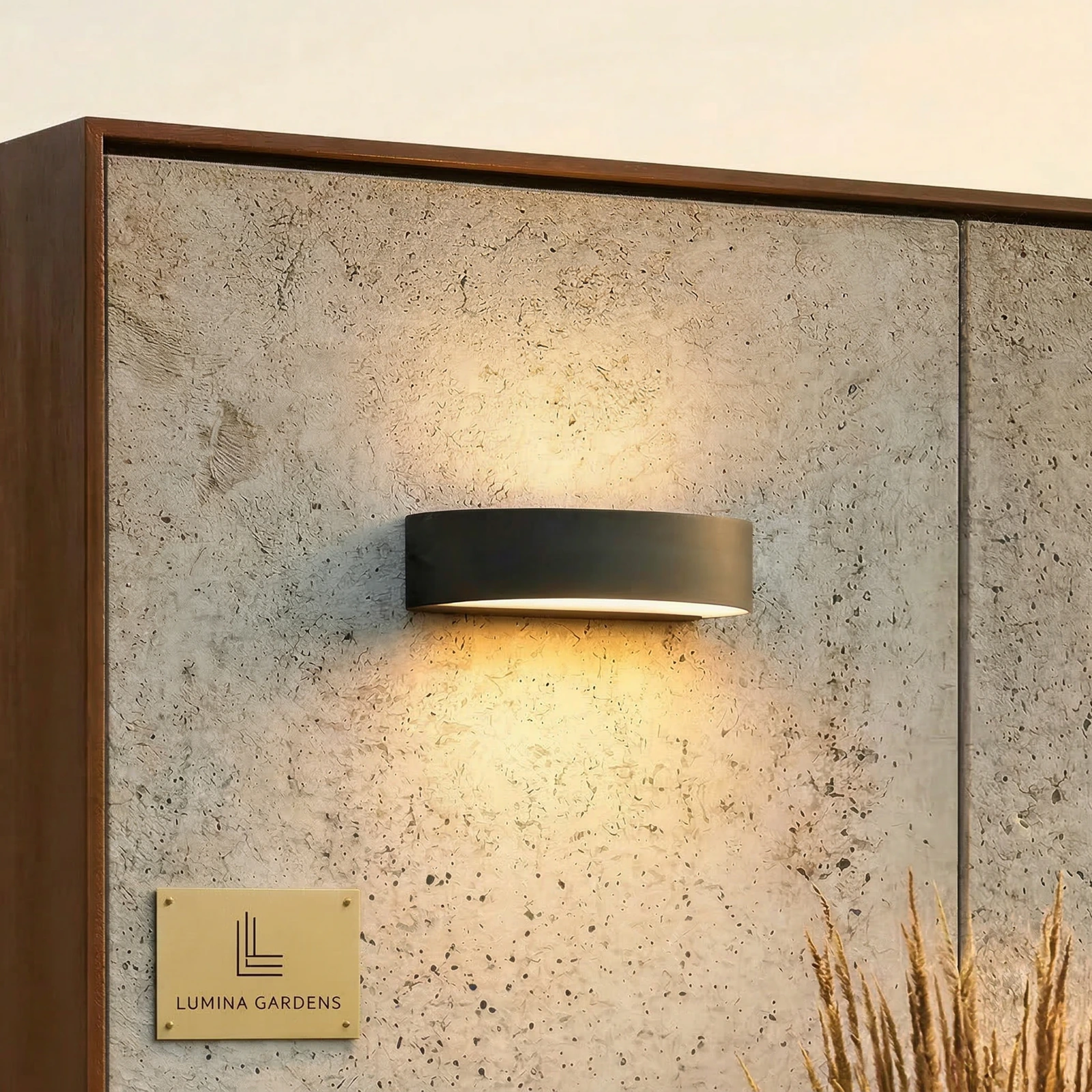

The slim curved body produces light above and below the fitting. Review the lit sample, mounting height and wall surface together: texture and distance can change the visible beam effect.
APPLICATION & SELECTION

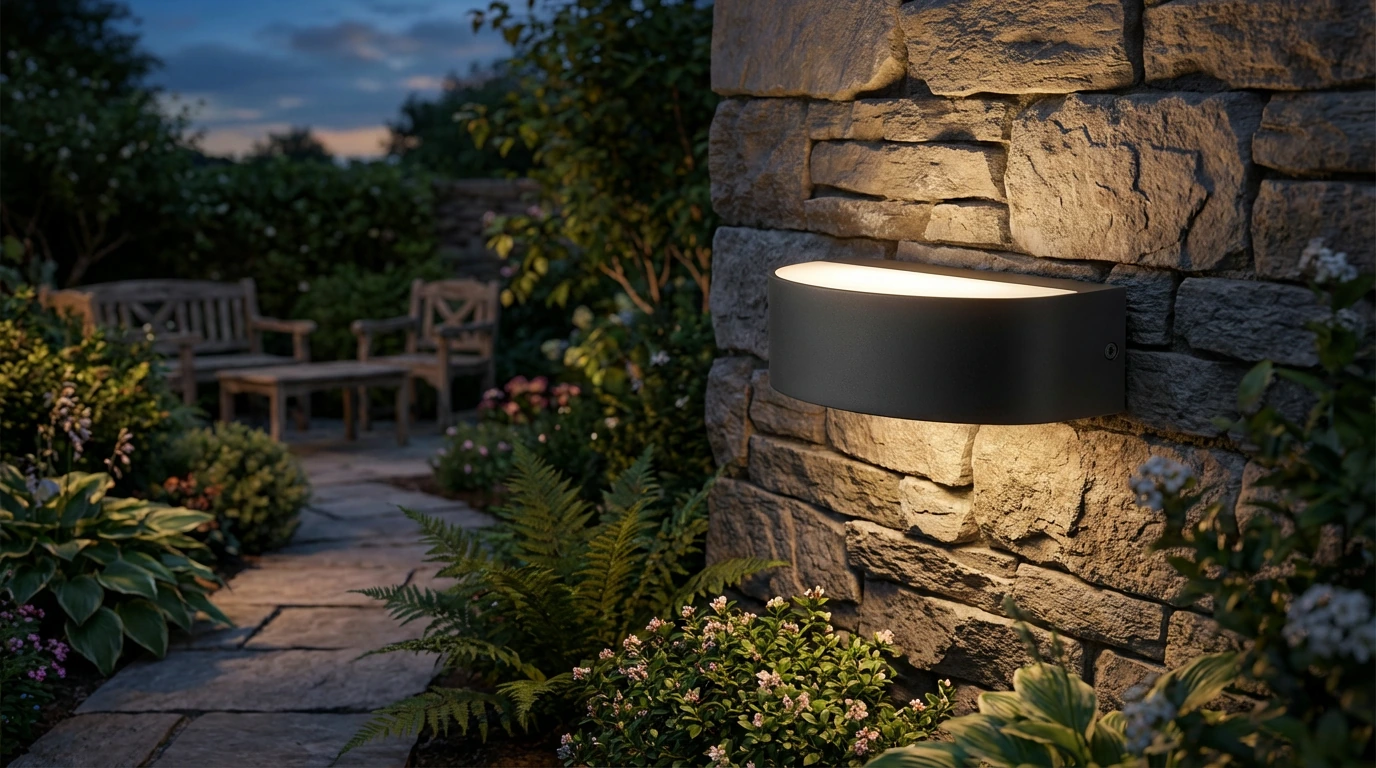

A compact option for exterior walls where buyers want a clean horizontal form. Before ordering, confirm the destination market, mounting surface, supply voltage, colour temperature, finish and required documentation.
CERTIFICATIONS & COMPLIANCE DOCUMENTS
Document availability is verified by model and configuration. Request the corresponding files before approving your order.
LCSB10135121ELCS2025-11-07Configuration matchedLCSB10135120SLCS2025-12-02Configuration matchedLCSB10135118SLCS2025-08-29Configuration matchedLCSA04035154RLCS2025-04-08Configuration matchedDocuments do not extend automatically to a different wattage, light source, driver or construction.
Request compliance documents ↗TESTING & QUALITY CHECKS
Explore factory testing relevant to plastic and resin outdoor lighting: material exposure and protection in use.
Outdoor housings face sunlight over time. See lighting parts placed in our UV chamber for accelerated exposure testing.
Water exposure matters outdoors. See our spray-test setup for checking a fitting’s protection against water ingress.
A mounted sample, a controlled impact. See how a pendulum is used to assess resistance to mechanical impact.
The quotation lists IP65 / IK06. These clips illustrate factory procedures, not a test result for this model. Request the matching reports, material information and installation documents for your selected configuration and market.
BEFORE YOU SHORTLIST
The working range includes white, black, dark grey and light grey. Confirm the selected finish against an approved physical sample before mass production, because screen colour is only a reference.
The quotation includes 3000K, 4000K and 6500K fixed-CCT options and a 3CCT configuration. Confirm the selected construction, control method and label information in the order specification.
Its plastic housing avoids the same corrosion mechanism as exposed metal and the material is selected for outdoor UV resistance. “Coastal” is application guidance, not a separate certification: confirm the complete bill of materials, installation conditions and buyer test requirements for the destination market.
Share the destination country, estimated quantity, voltage, colour temperature, finish, logo and packaging needs, plus the certificates or retailer documents required. This prevents comparing prices for different constructions.
NEXT STEP
Choose the required configuration above, then add the model to your enquiry. We will confirm the matching construction, documents and packaging requirements.
