1 / 5 · GD-PUD020 Linear 3CCT Wall Light

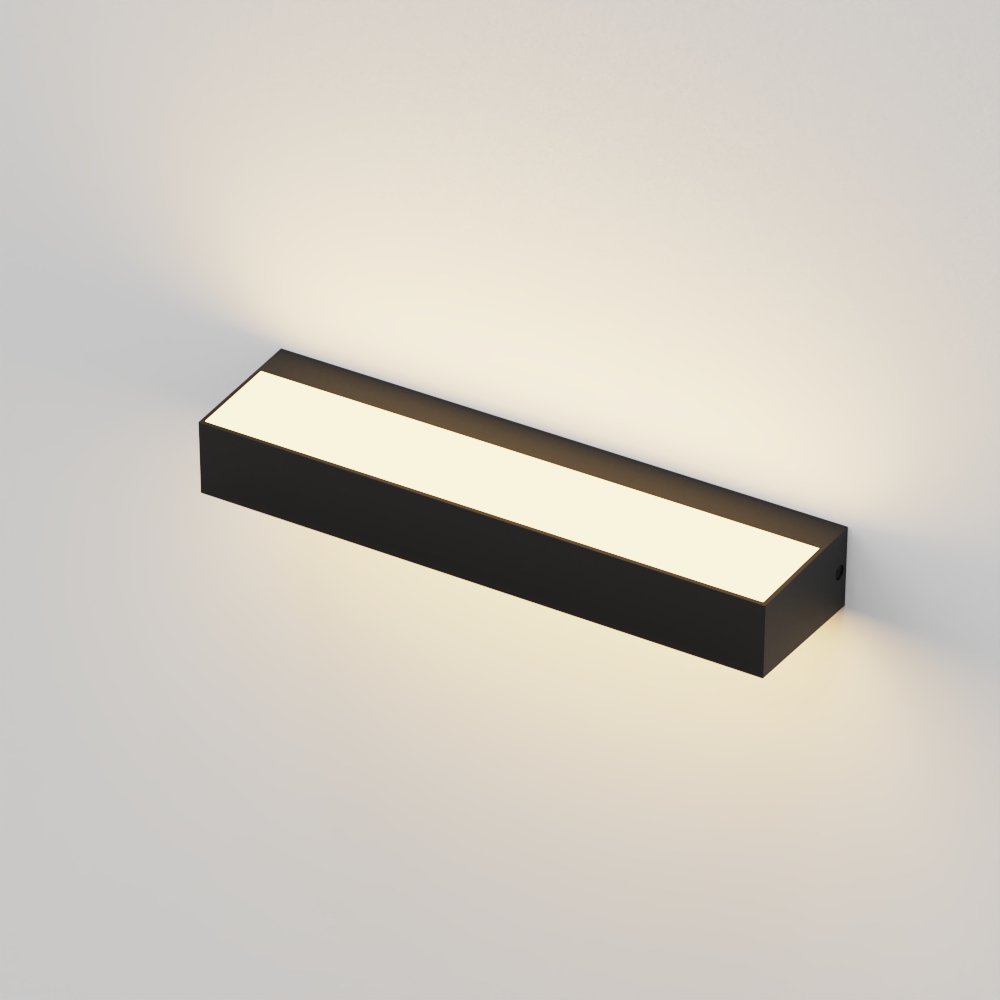

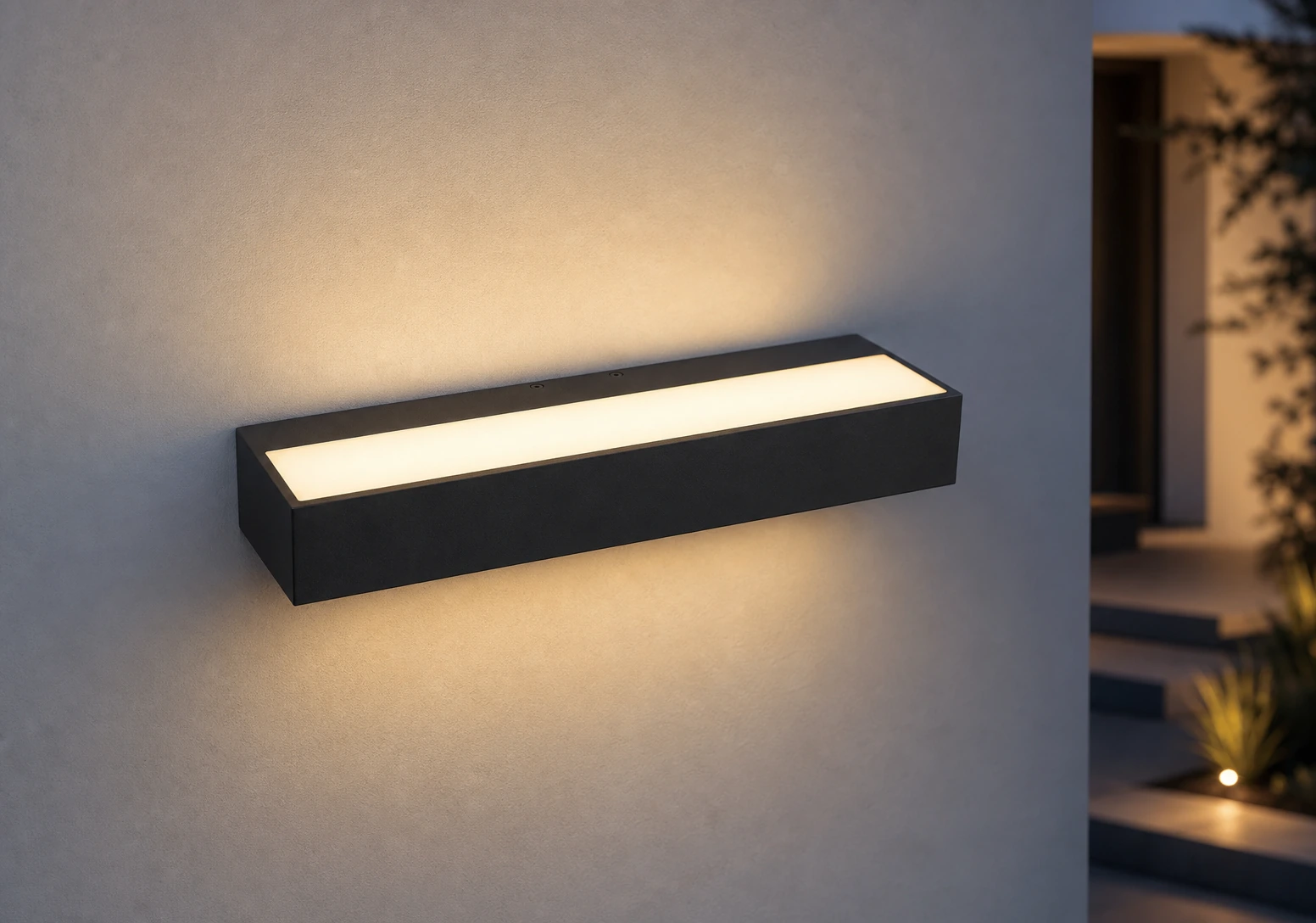

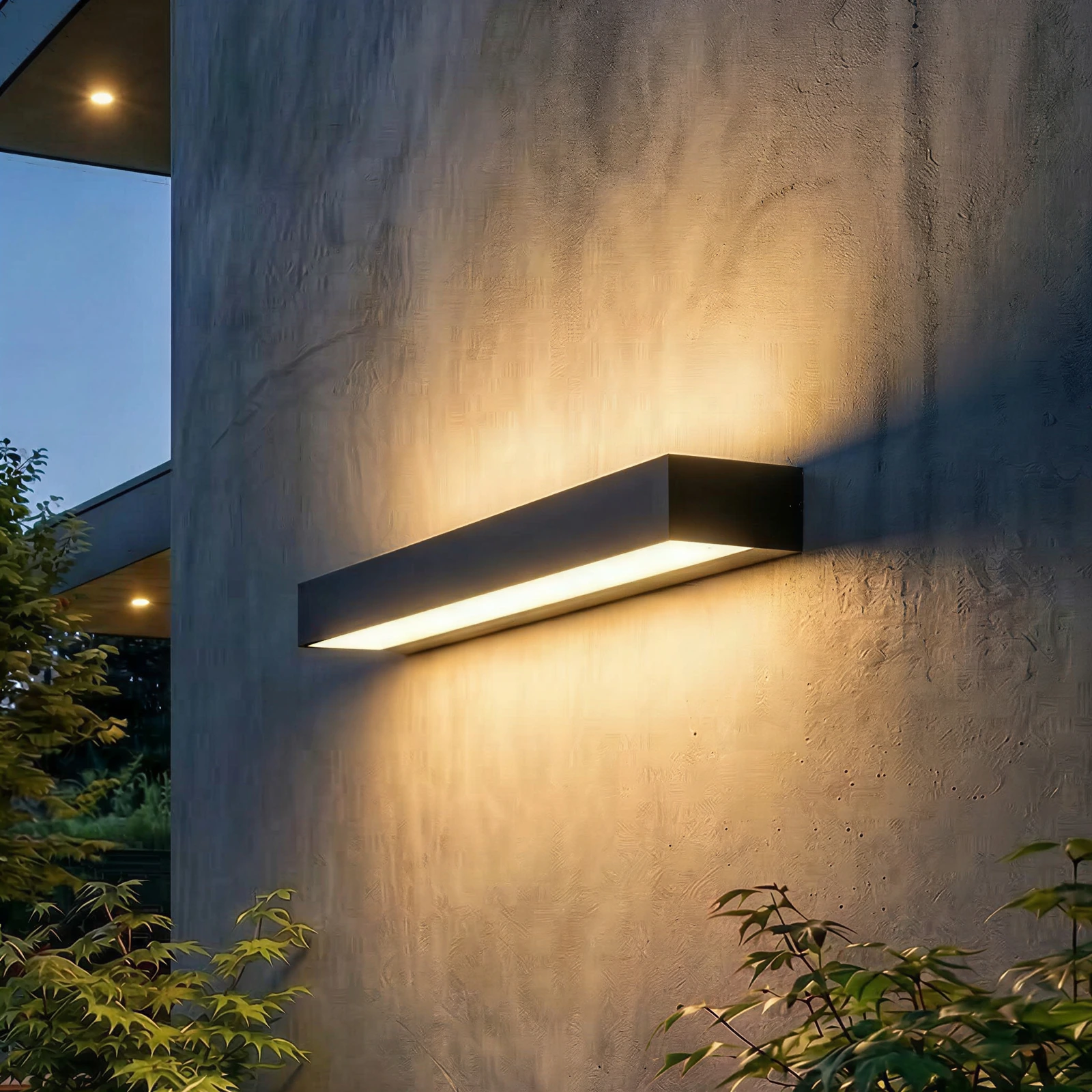

Images show finish, lighting and installation references. Confirm your selected configuration when enquiring.
15W 3CCT / 800lm / IP65
Compliance documentsEMC · LVD · RoHSMatched to the listed configuration ↓The GD-PUD020 is a linear 3cct wall light designed for exterior walls, entrances and circulation areas. Its long horizontal body with an integrated diffuser gives retail and brand ranges a clearly differentiated outdoor-lighting option.
PRODUCT DETAILS
Nominal product specifications. Values may vary with configuration; confirm your selected combination before ordering.
Final configuration and order requirements are confirmed with our sales team.
View enquiry list →BUYER CHECKPOINTS
Use the product, the application and the evidence together when comparing suppliers.
PRODUCT & MATERIAL
The GD-PUD020 is a linear 3cct wall light designed for exterior walls, entrances and circulation areas. Its long horizontal body with an integrated diffuser gives retail and brand ranges a clearly differentiated outdoor-lighting option.

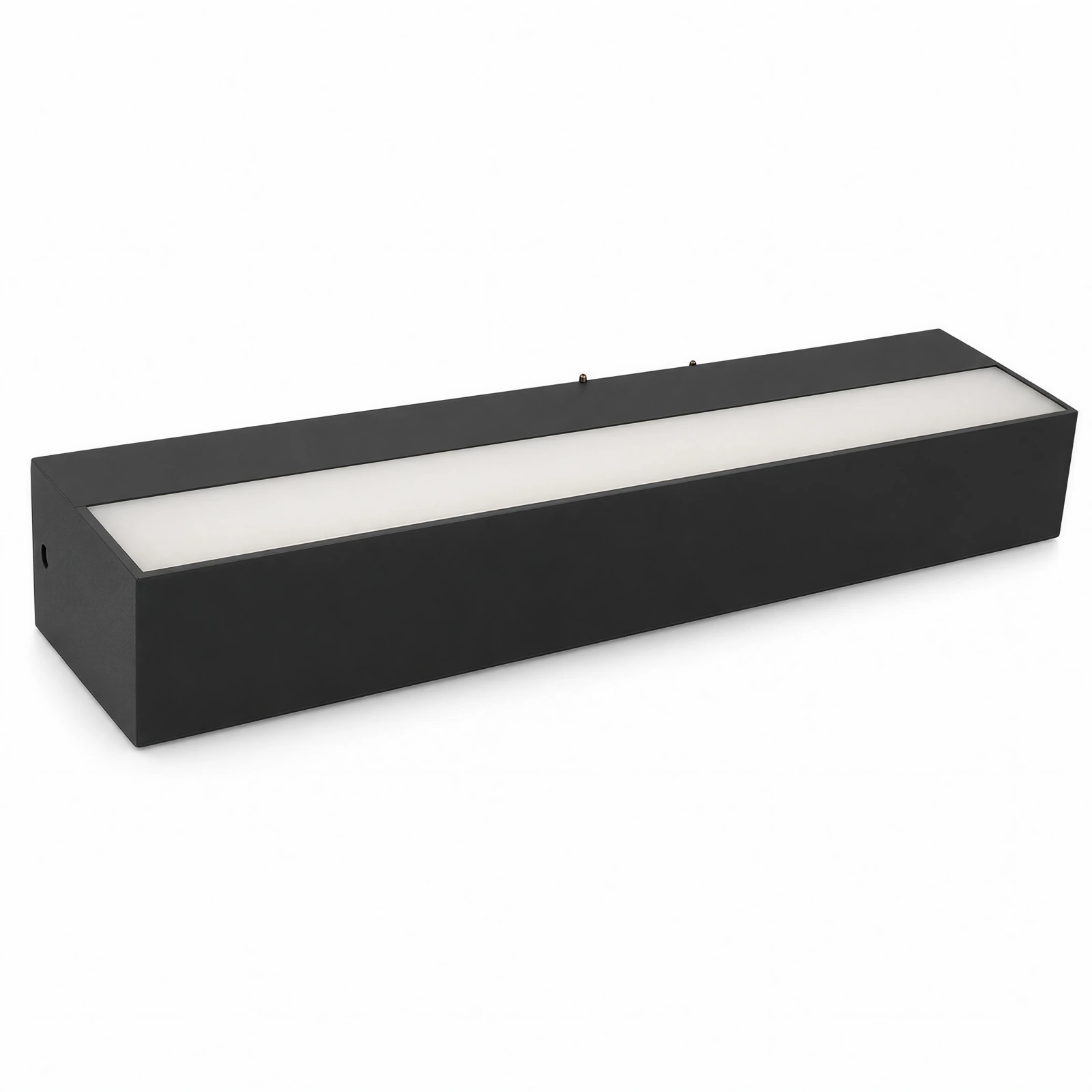

VIEW THE FINISH
Review the additional product view alongside the physical sample. Confirm the selected colour and light effect for the exact configuration before placing a production order.
APPLICATION & SELECTION
Consider GD-PUD020 for exterior walls and entrances. Before ordering, confirm the destination market, installation method, supply specification, finish, required packaging and documentation.
CERTIFICATIONS & COMPLIANCE DOCUMENTS
Document availability is verified by model and configuration. Request the corresponding files before approving your order.
LCSB04035015ELCS2025-4-15Model and configuration listed in quotation; confirm current filesLCSB04035014SLCS2025-4-24Model and configuration listed in quotation; confirm current filesLCSA04035154RLCS2025-4-8Model and configuration listed in quotation; confirm current filesDocuments do not extend automatically to a different wattage, light source, driver or construction.
Request compliance documents ↗TESTING & QUALITY CHECKS
Explore factory testing relevant to plastic and resin outdoor lighting: material exposure and protection in use.
Outdoor housings face sunlight over time. See lighting parts placed in our UV chamber for accelerated exposure testing.
Water exposure matters outdoors. See our spray-test setup for checking a fitting’s protection against water ingress.
A mounted sample, a controlled impact. See how a pendulum is used to assess resistance to mechanical impact.
The quotation lists IP65 / IK06. These clips illustrate factory procedures, not a test result for this model. Request the matching reports, material information and installation documents for your selected configuration and market.
BEFORE YOU SHORTLIST
The quotation lists 15W 3CCT and nominal output of 800lm, including a 3CCT version. Confirm the required supply voltage and colour temperature for the selected configuration; unlisted options are not automatically included.
Check the physical sample, dimensions (331 × 46 × 81.5mm), finish, light effect and the requirements of your destination market. Then request documentation for the exact configuration.
Document availability must be checked against the selected wattage, light source, construction and destination market. Tell us which certificates and reports your retailer or importer requires; we will confirm the matching files before the order.
Share the destination country, estimated quantity, selected finish and light specification, plus any logo, colour-box or PDQ requirements. This lets us quote a comparable construction.
NEXT STEP
Choose the required configuration above, then add the model to your enquiry. We will confirm the matching construction, documents and packaging requirements.
